SmartSwitch 6mm 2-Pin/3-Pin SPST/SPDT 2A/3A Metal Toggle Switches

SmartSwitch 6mm 2-Pin/3-Pin SPST/SPDT Metal Toggle Switch

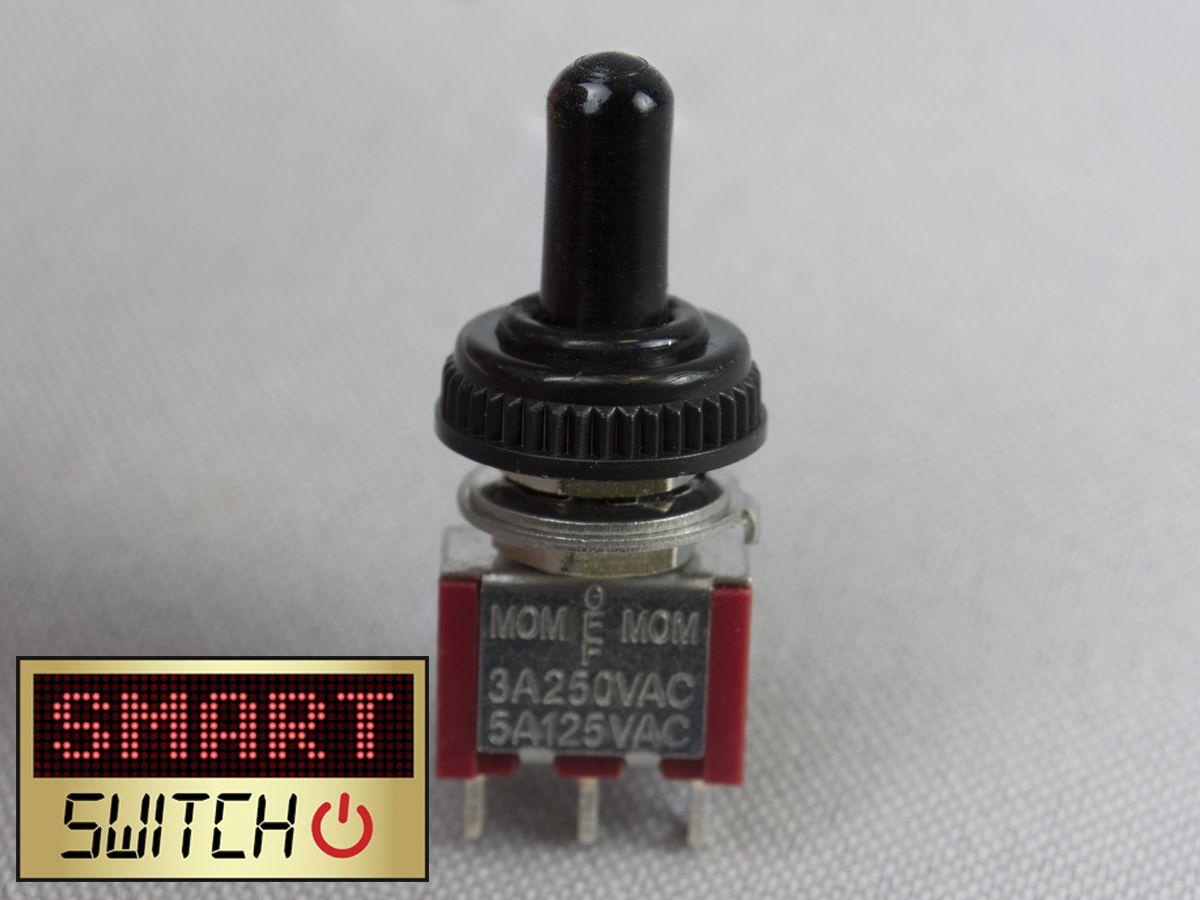

High quality moderate duty switches made from chromium plated brass with silver brass contacts and diallyl phthalate plastic casing. The listing features both Single Pole Single Throw (SPST) & Single Pole Double Throw (SPDT) switches for a variety of uses and functions. Also available are rubber waterpoofing covers that simply screw on to the switch lever to help protect the switch during operation in wet conditions.

The switches can be wired or soldered directly in to your existing wires.

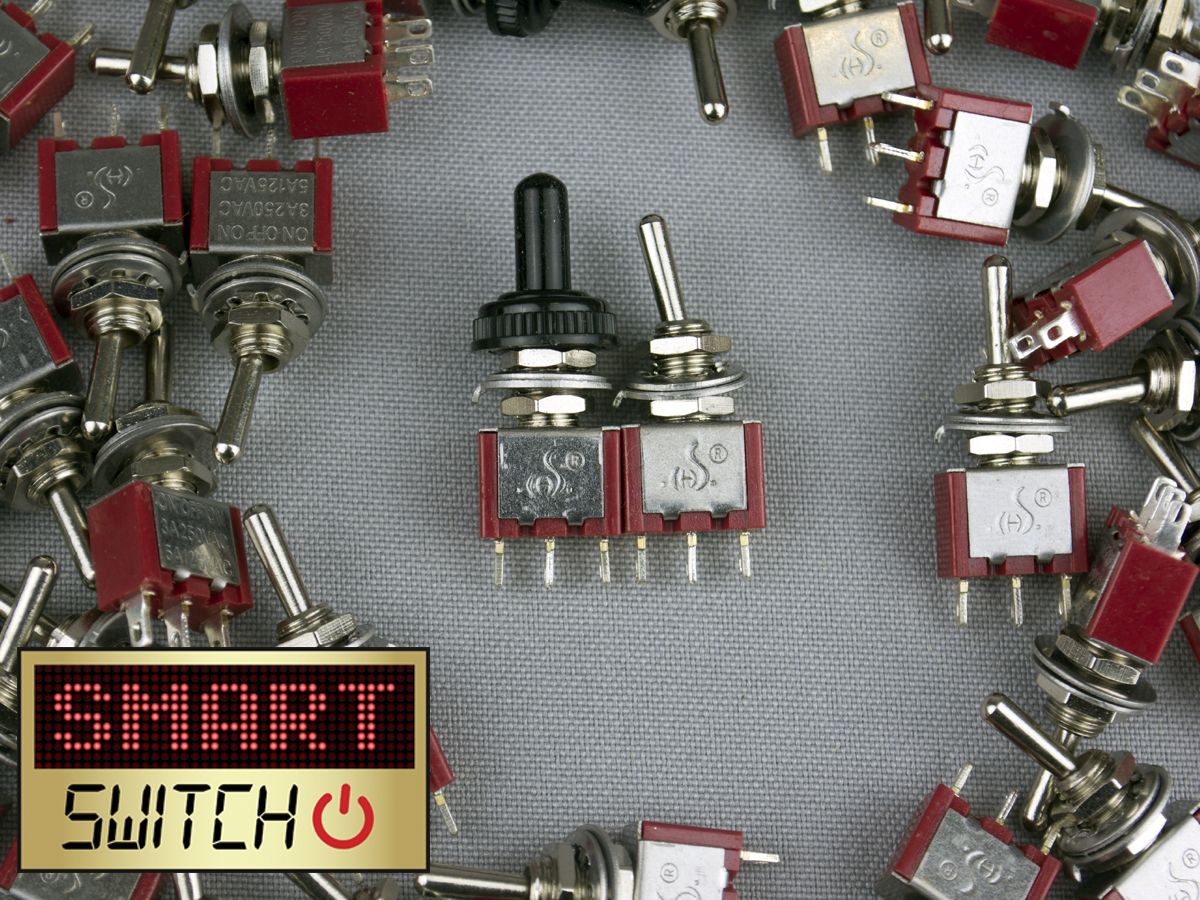

Important Notes! - The black waterproof cover is sold seperately and not included with the switch, they can be purchased as individuals or packs under the Switch Operation drop down as the "Cover" option. A pack is 1 switch or cover, two switches are shown per picture for illustration purposes.

Dimensions (Body)
Length: 13mm
Width: 6mm
Height: 9mm
Fits Panel Thickness: 1mm to 8mm

Technical Specifications
Rated Voltages (DC): 6V / 12V /24V
Rated Voltages (AC): 120 VAC / 125 VAC / 250 VAC
Power Rating: 2A / 3A / 5A

Net Weight: 5g

Ideal for a wide range of applications including the additional electronical equipment inside & outside vehicles or boats (such as flashing lights, chassis lights, and dome lights) and custom dashboard units, electrical hobby projects, or industry.

We are so confident that you will be not be disappointed with these that we offer a 14-Day No Quibble Money Back Guarantee.
