24V Premium RGBW (6000k) COB LED Strip (560 LED / 16.6w / 18-2300mcd per meter)

As low as £12.99 £10.82
15 In Stock
SKU
COB/CX-2492
COB Strip
VAT/Tax is payable for goods shipped to UK addresses only.
For shipments outside the UK, the VAT will not be charged at checkout

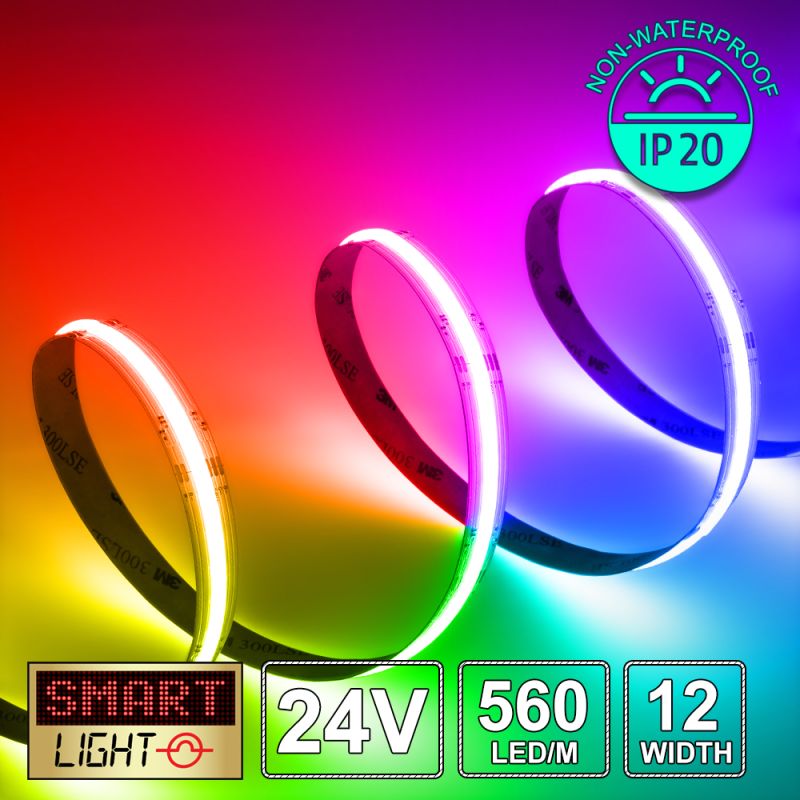

SmartLight premium quality RGBW continuous COB LED strip light with a self-adhesive 3M backing.

The 24V tape uses a maximum of 16.6 w/m of power to produce a visual intensity of between 1800 and 2300 mcd/m. The RGBW strip is made from alternating Red, Green, Blue and White chips and with an appropriate controller can produce a large number of colours as well as static and dynamic effects. A true white can also be achieved with a colour temperature of 6000k (cool white).

It should be noted that as LEDs of alternating red, green, blue and white are used, the density of each individual colour is 140 LEDs/m.

The uses are endless, from furniture to kitchen cabinets to lighting signs to accent lighting. 24V strips allow a longer length to be connected continuously without a visible voltage drop as well as being ideal for situations where only a 24V DC supply is available, such as commercial vehicles.

The tape comes with five terminating wires that need to be plugged in to an appropriate controller to be used. It can be cut every 50mm and is flexible enough to have a minimum bend diameter of only 60mm.

The IP20 rating allows the strip to handled by hand and a resistance to dust or objects over 12mm in size. If used in environments where the strip is likely to be exposed to liquids or moisture then adequate protection should be used to house the strip in.

Technical Specifications of the products in this range

  ↓THIS↓
SKU CX-2492
Voltage: 24V
Colour: RGBW (6000k White)
Density: 560 led/m
Chip Size: 1.0*0.5 mm
PCB Width: 12 mm
Copper Thickness: 35µ / 35µ
Max. Power: 16.6 w/m
(R 4.1w, G 4.1w, B 4.1w, W 4.1w)
Luminous Intensity: 18-2300 mcd/m
IP Rating: IP20
Cutting Length: 50 mm
Min. Bend Diameter: 60 mm


Installing Your COB Strip Lights

COB strip lights are fairly straightforward to install. IP20 and IP65 tapes come with a strong 3M adhesive backing that will stick to most surfaces but not all - some surfaces like polyethylene or PVC or concrete are especially hard to adhere to. Cardboard can also pose a challenge sometimes as it is usually made from recycled material, which tends to have many small fibers on the surface that break away very easily. When installing, please ensure the surface is flat, smooth, clean and not too hot or too cold.

IP67 and IP68 tapes do not come with an adhesive backing as they are designed for use in situations where there is likely to be exposure to moisture or water, which would degrade the adhesive. The tape should be fixed in to place using clamps or a silicone sealant-type adhesive, or fixed using aluminium profiles.

Complete Your COB Strip Light Setup
RGB strips need an appropriate controller to be used. These controllers allow a large range of visual dynamic and static effects to be created such as fading, strobing and switching between alternating colours or multiple colours simultaneously. The controllers are usually operated with a remote control or with a mobile phone or even web technologies such as Alexa. The power supply/driver is usually plugged in to the controller which then powers the strip. We stock a large range of controllers and drivers to suit almost any requirement.

When choosing a power supply or a driver, we recommend that the strip load is 10% less than the maximum load of the driver as this extends the power supplies life by helping it manage heat better. If the strips are to be used in a commercial environment or will be switched on continuously for an extended period of time on a regular basis then we recommend using a commercial power supply as these are designed for heavy duty use.

More Information
SKU COB/CX-2492
Manufacturer SmartLight
Colour RGB+Cool White
IP Rating IP20 - Non-Waterproof
Density 560 LED/m (18-2300mcd)
LED Voltage 12V
